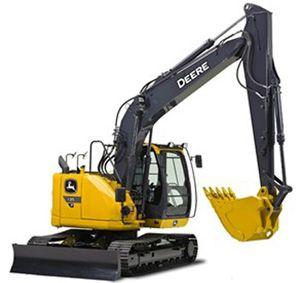

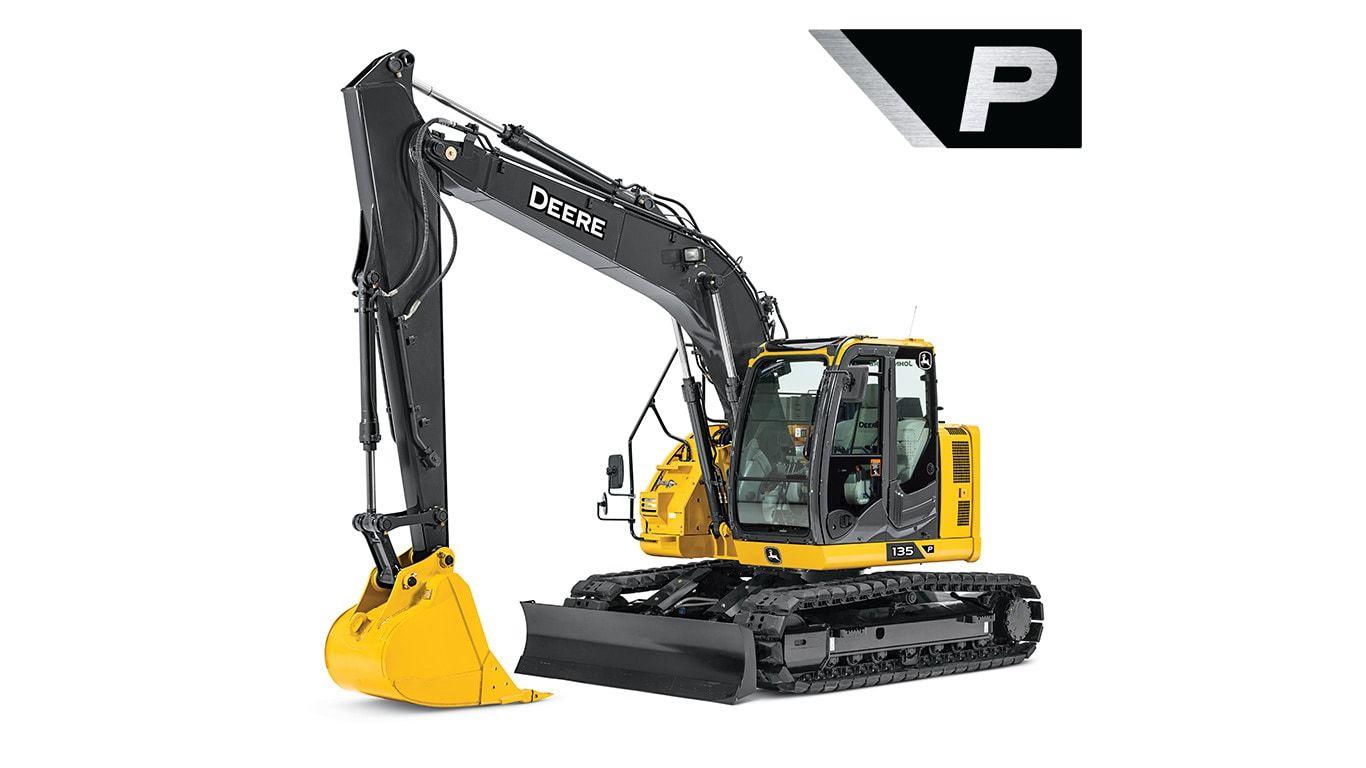

John Deere Mid-Size ExcavatorsMid-Size Excavator
Take digging forces to new levels with power boost when you need it. A well-balanced, smooth operating machine in a reduced tailswing configuration.
Standard Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Isuzu is a trademark of Isuzu Motors Limited Corporation.

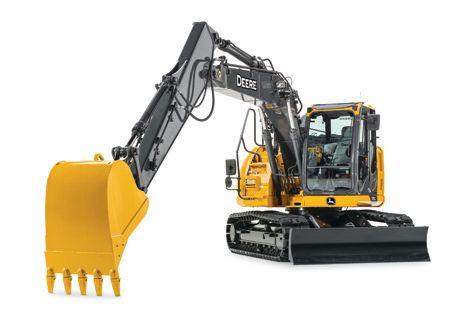

Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
| Emission Rating | Tier 4 / Stage IV |
|---|---|
| Engine Manufacturer | Isuzu |
| Number Of Cylinders | 4 |
| Displacement, ltr (Inches³) | 3 (182) |
| Rated speed, rpm | 2000 |
| Engine Output - Net, kW (hp) | 75 (101) |
| Number Of Carrier Rollers - Each Side | 1 |
| Number Of Track Rollers - Each Side | 7 |
| Track Shoe Width, mm (inches) | 600 (24) |
| Transport Length Mono Boom, mm (ft/in) | 7390 (24 ft 3 in) |
|---|---|
| Transport Height - Maximum, mm (ft/in) | 2870 (9 ft 5 in) |
| Overall Undercarriage Width, mm (ft/in) | 2590 (8 ft 6 in) |
| Track Length On Ground, mm (ft/in) | 2880 (9 ft 5 in) |
| Overall Undercarriage Length, mm (ft/in) | 3580 (11 ft 9 in) |
| Tailswing Radius, mm (ft/in) | 1490 (4 ft 11 in) |
| Ground Clearance, mm (inches) | 410 (16) |
| Dozer Blade Height, mm (inches) | 460 (18) |
| Dozer Blade Width, mm (ft/in) | 2490 (8 ft 2 in) |
| Width over fixed tracks, mm (ft/in) | 2590 (8 ft 6 in) |
| Track Gauge, mm (ft/in) | 1990 (6 ft 6 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 8860 (29 ft ) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 8720 (28 ft 8 in) |
| Dig Height - Mono Boom, mm (ft/in) | 9690 (31 ft 10 in) |
| Dump Height - Mono Boom, mm (ft/in) | 7220 (23 ft 8 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 5790 (19 ft ) |
| Dig Depth - Mono Boom, mm (ft/in) | 5980 (19 ft 8 in) |
| Fuel Tank, ltr (gallons (US)) | 220 (58) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 60 (15.9) |
| Ground Bearing Pressure, kPa (PSI) | 39 (5.66) |
|---|---|
| Swing Speed, rpm | 13.3 |
| Swing Torque, kNm (lbf / ft) | 34 (25000) |
| Travel Speed - High, kph (mph) | 5.5 (3.4) |
| Tractive Force, kN (lbf) | 110 (24729) |
| Arm Tearout, kN (lbf) | 61 (13710) |
| Bucket Breakout, kN (lbf) | 104 (23380) |
| Gradeability, % | 70 |
| Total Flow, lt/min (gallons (US) / min) | 210 (56) |
| Bucket Pressure, bar (PSI) | 343 (4975) |
| Boost Pressure, bar (PSI) | 363 (5265) |
| Operating Weight, kg (lbs) | 15100 (33290) |
|---|
